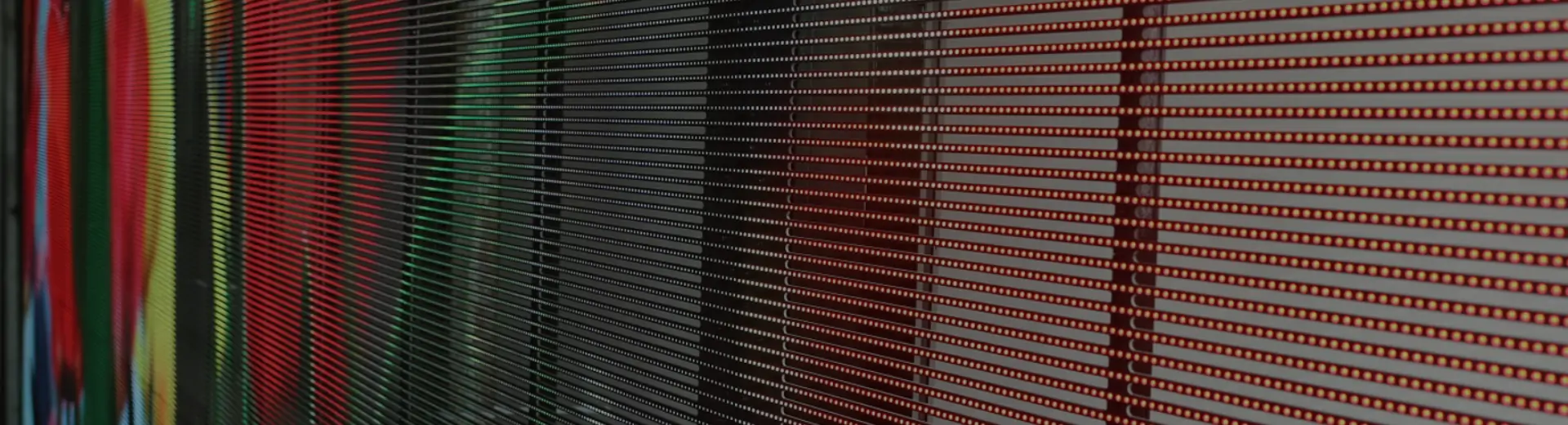

Outdoor Transparent LED Screen

Outdoor transparent LED screen is a LED panel with transparency which is lower the weight and in waterproof and with less wind resistance, especially for where usually with strong winds.

Product Description

Lightweight and slim

The cabinet material is die-cast aluminum, which is with high overall precision. Thickness of the cabinet is only 75mm and the weight is less than 19kgs/sq.m which greatly reduces the stress during transportation and installation.
Cabinet size: 500mm*500mm*75mm, 500mm*1000mm*75mm

Product appearance display

1) Easy to hold and install with handles and positioning pin.
2) Stable power socket and network socket, the wire will be stably fixed, and the power supply and signal transmission are stable.
3) Socket can be customized according to customer needs.

Various shapes with curved lock design

Adopting the push-pull curved lock design, we can choose seven arcs (-15° -10° -5°0° 5° 10°15°).
The diverse arc selectivity allows clients to choose the most appropriate arc according to specific needs, making it more flexibly applicable to different scenarios and designs.

High Transparency

Transparency can be up to 36%, which can produce a strong perspective effect , making the images more vivid , especially at night.

Excellent Heat Dissipation

1) Die-casting aluminum cabinet.
2) The cabinet is used with wind-pass design. As a result, even without fans and air conditioners , the screen can still work properly in high temperature environment of 60℃.

Rear Access

We install the module and power box via screws. The modules , power supply, receiving card , and other components can be disassembled from the rear, which is convenient to install and maintain the screen.

Fast and Easy Installation

Our rental transparent LED display realizes the connection between the cabinets through connecting pieces and fast locks. And we also design a handle for each cabinet. So that it can be carried to install fast and easily.

High Protection: IP65

1) All exposed materials are waterproof and UV resistant.
2) Our outdoor connivers are plugged in from bottom to top of the power box , which make more waterproof.

Multiple Options of installation

Stacking installation: Ground stacking makes your installation easier and faster during the events. Hanging installation: The hanging bar can hang the cabinets from truss. The light weight of the cabinet will reduce the physical pressure of the frame.

Parameter

Item	Parameter
Model NO.	P3.91-7.8	P5.2-10.4
Pixel pitch	W: 3.91mm H: 7.8mmSMD1921	W: 5.2mm H: 10.4mm
Pixel configuration	1R1G1B	1R1G1B
LED type	SMD1921	SMD1921
Module size	500mm x125mm	500mm x125mm
Module resolution	128x16	96x12
Panel resolution	128x128	96x96
Cabinet size (overall)	500mmx1000mm	500mmx1000mm
Density	32,768 dots/㎡	18432 dots/㎡
Brightness	≥4,500 NITS	≥4,500 NITS
Scan method	1/8 scan	1/4 scan
Best view distance	≥4m	≥5m
Max. power consumption	800 W / ㎡
Ave. power consumption	240 W / ㎡
Weight per ㎡	9.5 KG
Color depth	14 bit
Colors	281 trillion
Refresh rate	≥3,840Hz
Protection level	IP65 front, IP54 rear
