Perimeter LED Display

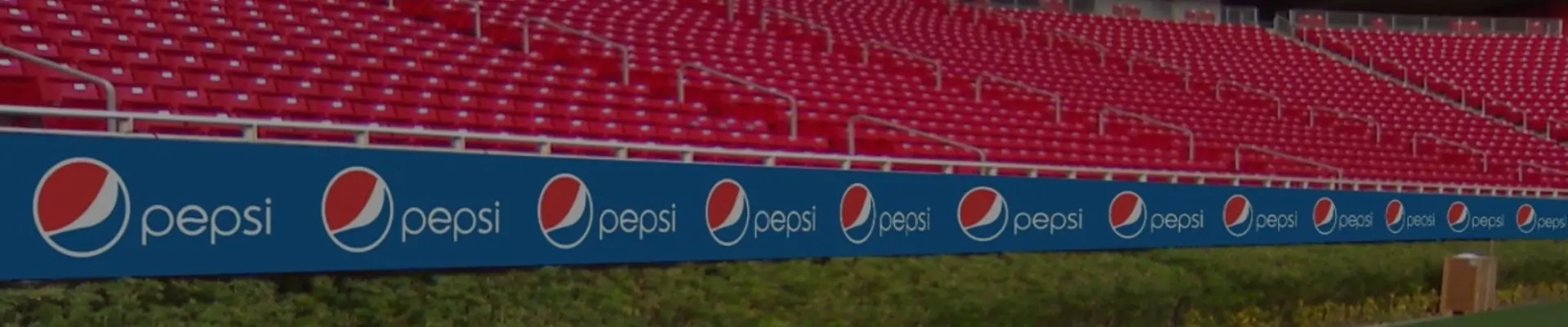

Perimeter LED screen is usually used for advertising, message at football courts, basketball courts, skating rinks. Fixed installation and rental business are suitable, catering to different applications.

Product Description

Slim and lightweight

Die-cast magnesium cabinet makes it slim, solid and lightweight. Fast locking system makes it possible to save time during install and dismantle. Only 29 kg on a 960x960mm cabinet make it fast install into big screens.

Different pixel pitches available

Pixel pitch can be 2.5mm, 4mm, 5mm, 6.67mm, 8mm, 10mm, and both indoor and outdoor type will be provided according to requirements and demands.

Soft header and soft masks

Soft header and soft masks are utilized to protect the athletes or other related personnel.

Angel Adjustable

The angel between the panel a and ground is able to adjustable.

Parameter

Item	Parameter
Pixel pitch	5mm	6.67mm	8mm	10mm
Pixel configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED type	SMD2020 black	SMD3535
Module size	320x160mm	320x160mm	320x160mm	320x160mm
Module resolution	64x32	48x24	40x20	32x16
Panel resolution	192x192	144x144	120x120	96x96
Cabinet size (overall)	960 x 960mm	960 x 960mm	960 x 960mm	960 x 960mm
Density	40,000 dots/㎡	22,500 dots/㎡	15,625 dots/㎡	10,000 dots/㎡
Brightness	6,000 NIT	6,000 NIT	5,800 NIT	6,000 NIT
Scan method	1/8	1/6	1/5	1/2
Best view distance	≥5m	≥7m	≥8m	≥10m
Max. power consumption	680W/panel	680W/㎡	680W/㎡	680W/㎡
Ave. power consumption	220W/panel	220W/㎡	220W/㎡	220W/㎡
Weight	29KG/panel	29KG/panel	29KG/panel	29KG/panel
Cabinet material	Die-cast magnesium	Die-cast magnesium	Die-cast magnesium	Die-cast magnesium
Grey scale	65536 levels	65536 levels	65536 levels	65536 levels
Colors	281 trillion	281 trillion	281 trillion	281 trillion
Refresh rate	≥3,840 Hz	≥3,840 Hz	≥3,840 Hz	≥3,840 Hz
Protection level	IP65 front, IP54 rear	IP65 front, IP54 rear	IP65 front, IP54 rear	IP65 front, IP54 rear
