PixelFlex Rental LED Panel

PixelFlex Rental LED

PixelFlex series LED panel is a creative LED design, modules are flexible which can be convex and concave with smooth curve. If want to make a small cylinder with perfect curve, PixelFlex series is a good solution. It is mainly design for rental application for different curve shapes.

Pixel pitch in 2.6mm, 2.97mm, 3.91mm and 4.8mm for indoor use, and 3.91mm for outdoor use.

Product Description

Lightweight and Slim

Panel size in 500x500mm, slim and lightweight. It is suitable for rental applications no matter installing from floor or hanging from top.

Fast Locking System

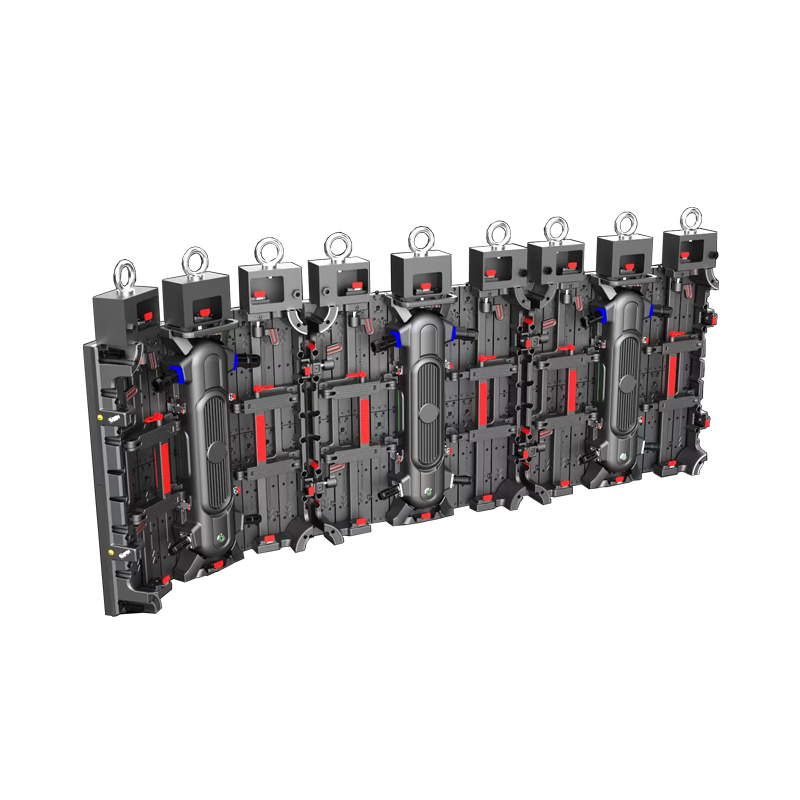

Fast-locking system, it is easy and fast to connect panels with fast lock without tools. Panels connected with fast locks, and curve adjusted is with fast locks as well.

Versatile Panel

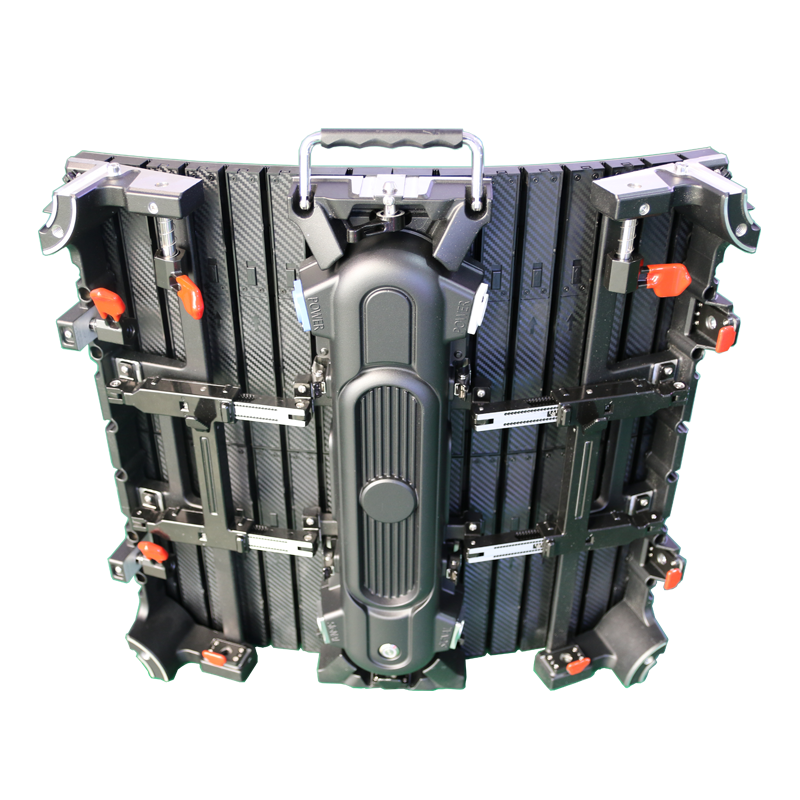

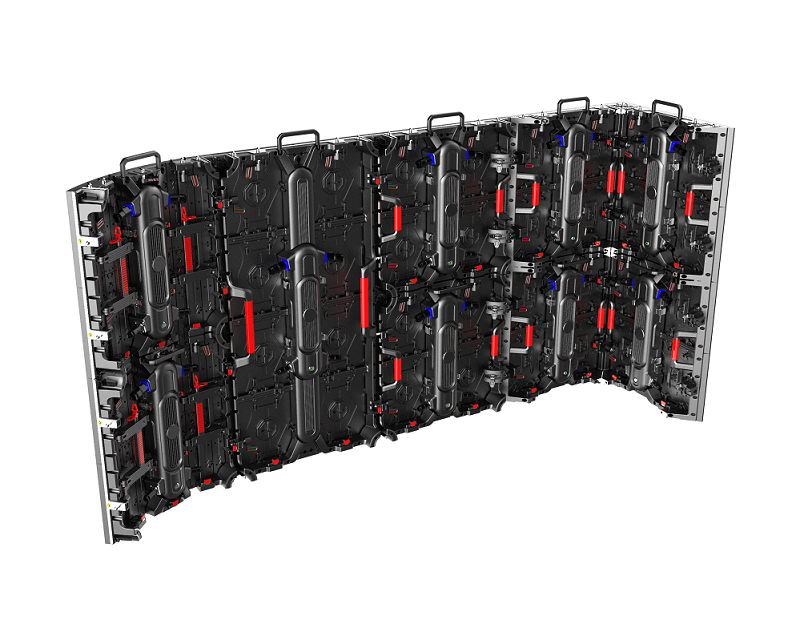

Curve and Flatness adjustable. The panel can be in concave and convex by adjusting the curved locks on panels, it can also be in corners. There are curved locks on each panel

Smallest Cylinder

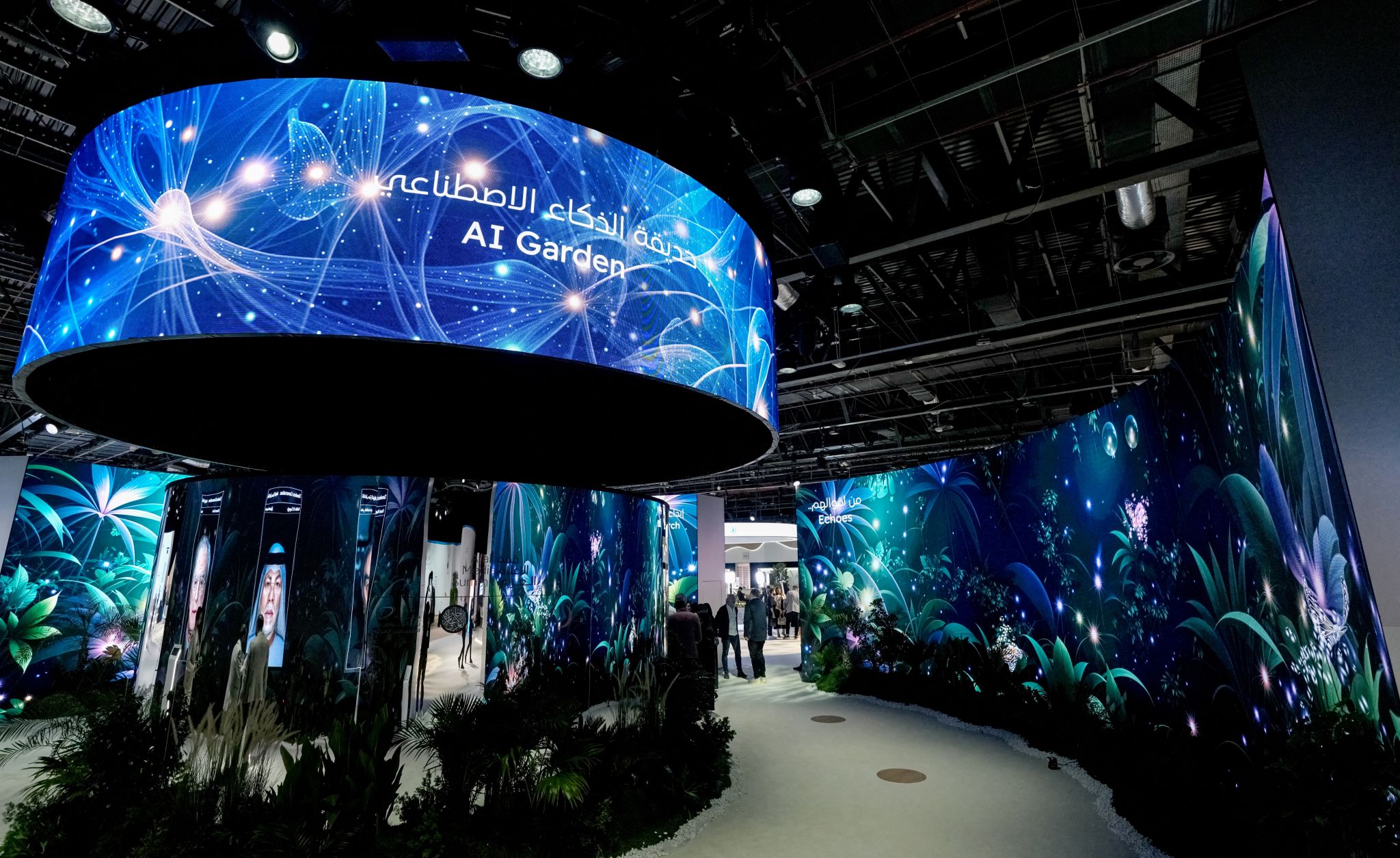

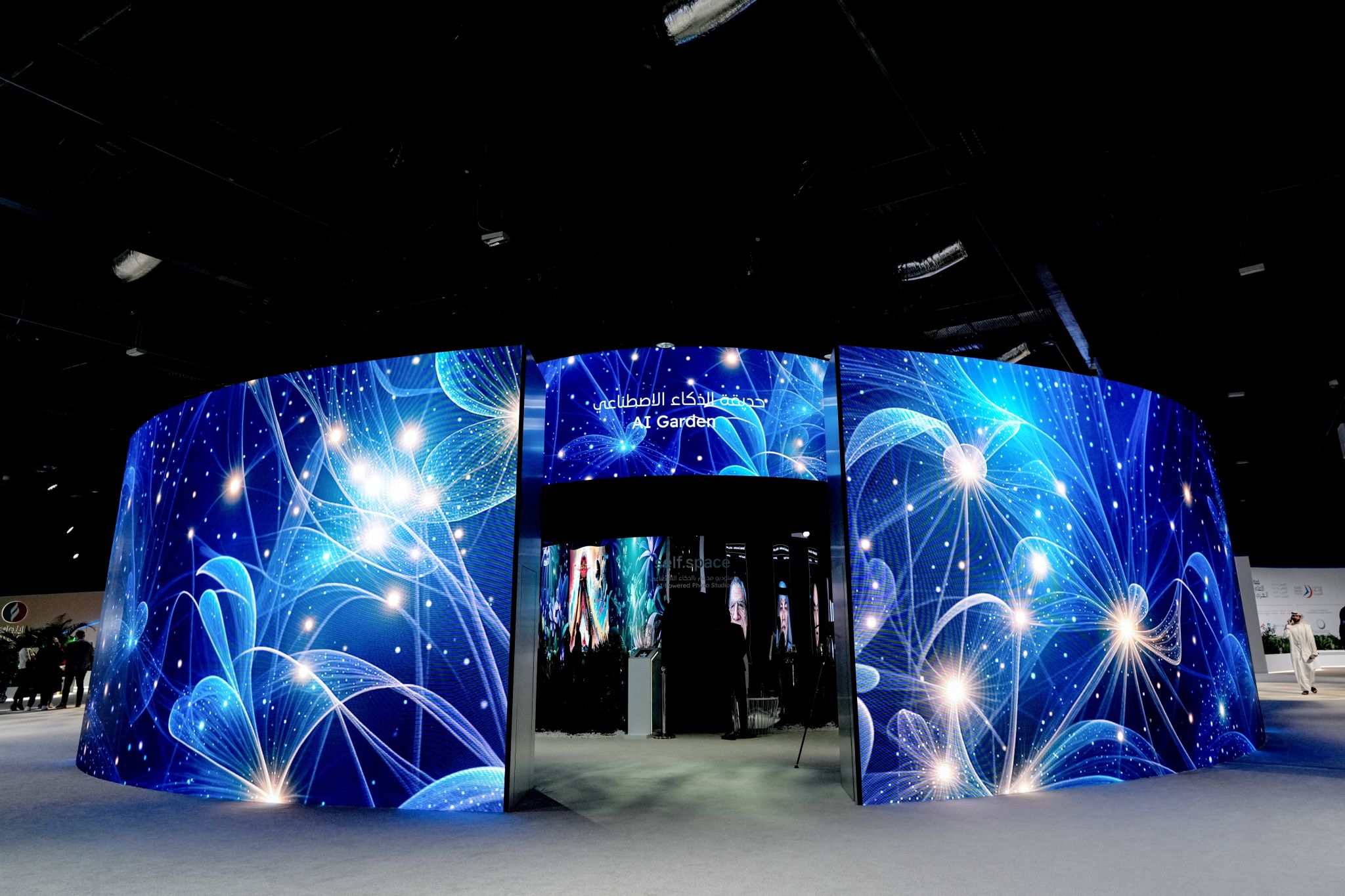

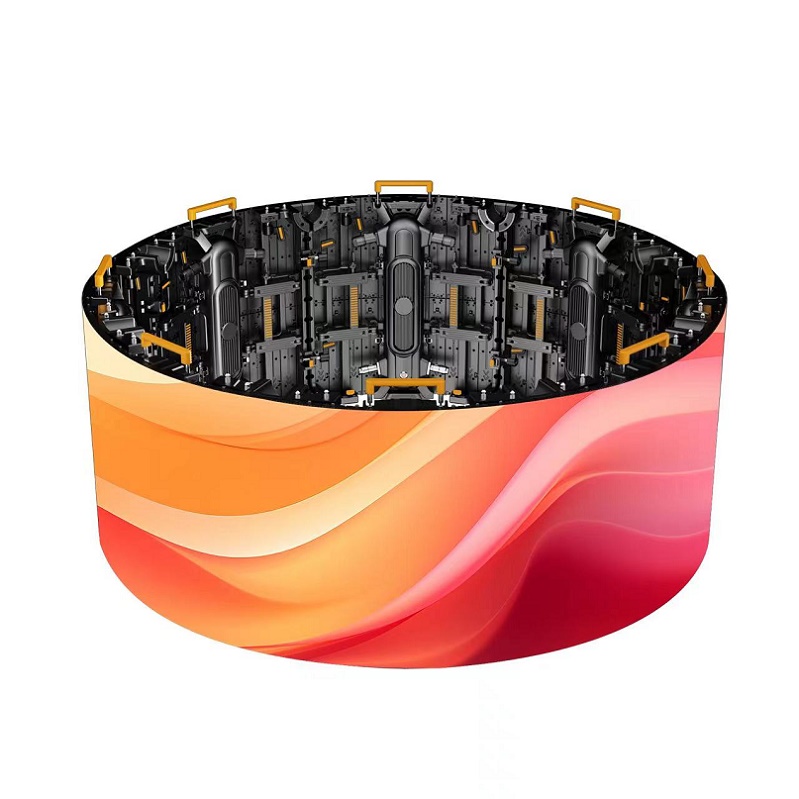

Thanks to the flexible design, it can be inner arc and outer arc, and 8 panels can build a smallest cylinder in 1.27m diameter.

Parameter

Item	Parameter
Model No.	P2.6	P2.9	P3.91
Pixel configuration	1R1G1B
LED type	SMD1515	SMD2020	SMD2020
Density（dots/m2）	147,456	112,896	65,536
Module size（mm）	250x250
Module resolution	96x96	84x84	64x64
Cabinet size（mm）	500x500	500x500	500x500
Cabinet resolution	192x192	168x168	128x128
Scan method	1/32	1/28	1/16
Brightness（nits）	≥800	≥900	≥900
Refresh rate（Hz）	≥3840	≥3840	≥3840
Weight	8 kg/panel
Cabinet material	Die-cast aluminum
Protection level	IP43
Maintenance	Rear
