Flex LED Tile 480x320mm

The Flex LED Tile Integrated represents a revolutionary flexible LED display solution specifically designed for fixed installations. With a panel dimension of 480x320mm, it features an integrated power supply unit and receiving card, streamlining the setup process. One of its key advantages is the elimination of the need for a steel cabinet, which significantly reduces installation time, labor costs, and shipping expenses.

Additionally, this LED display is available in a GOB (Glue On Board) version, offering enhanced protection and performance.

Product Description

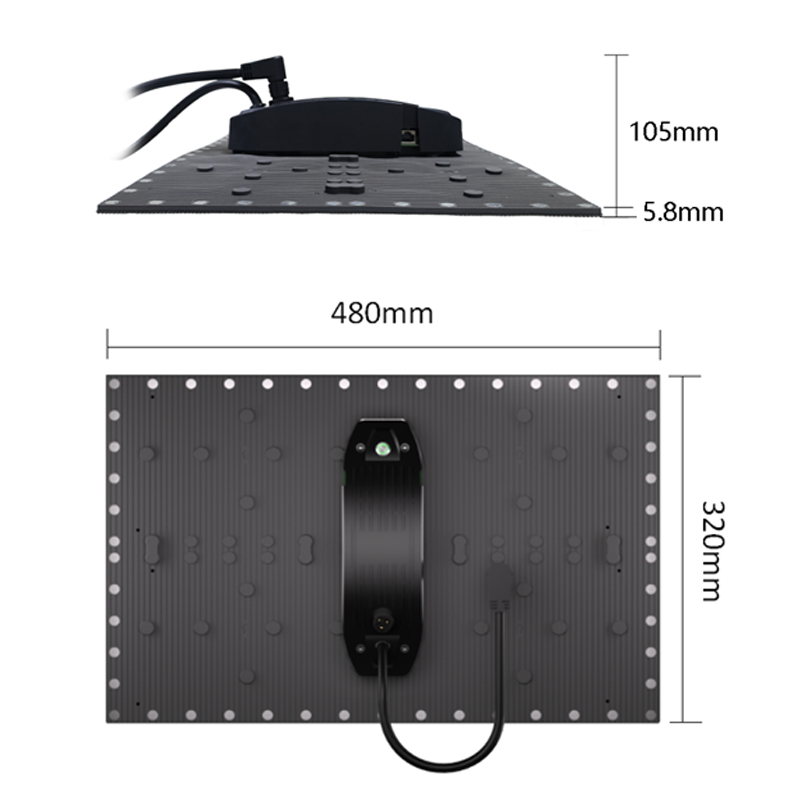

Super Slim and Lightweight

Flex LED tile is very slim, module thickness is 8.5mm, 105mm including power box. Its weight in 1.5kg per panel.

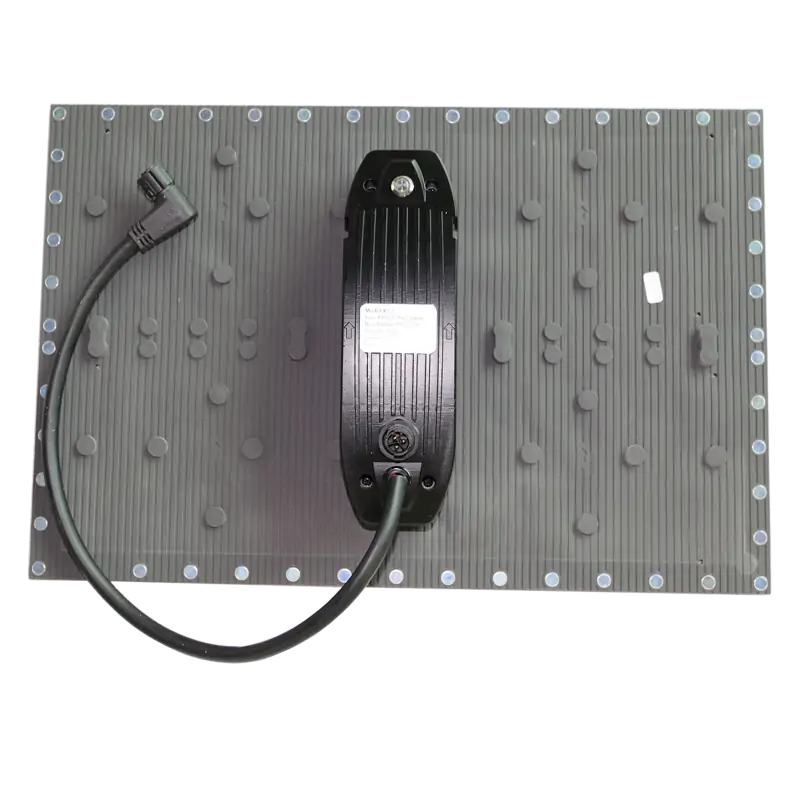

Time and Cost Saving

As the panel is built with a power box, an additional cabinet is no needed and it can be installed on frame structure directly. So it can save volume during shipping, and time during installation.

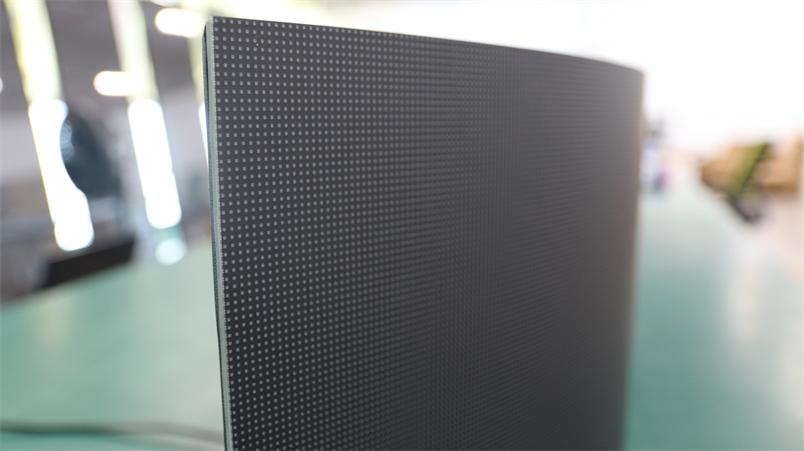

GOB Tech

For fine pixel pitch LED, there may be no mask, and GOB helps to protect the LEDs from damaging, and it can prevent liquids on the LED surface.

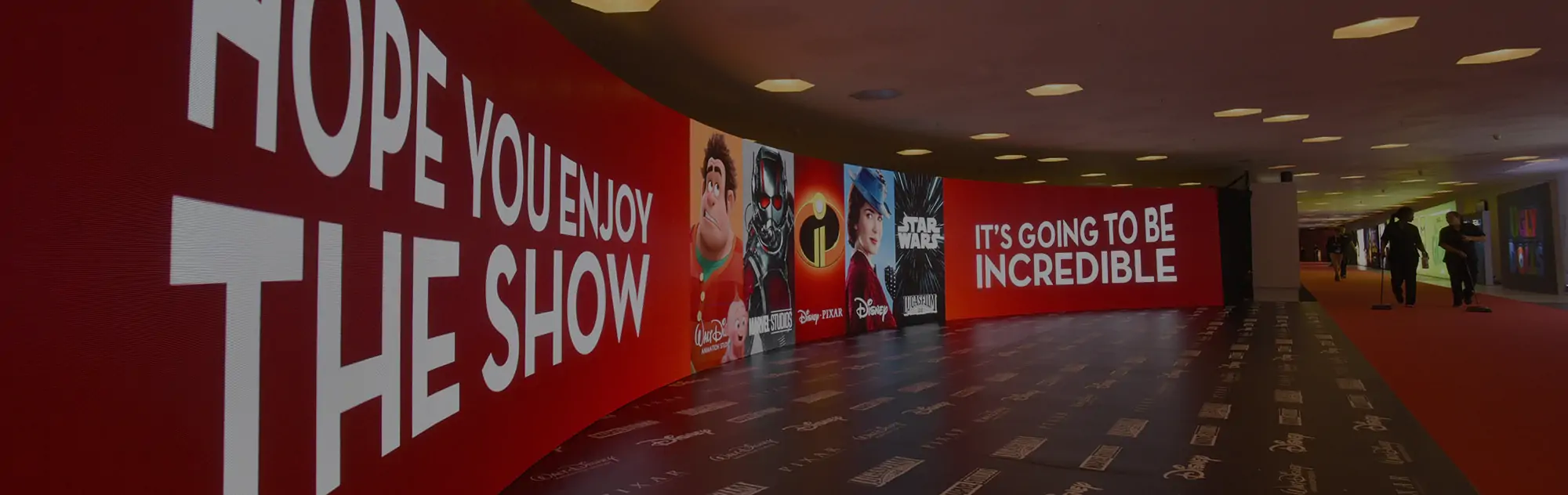

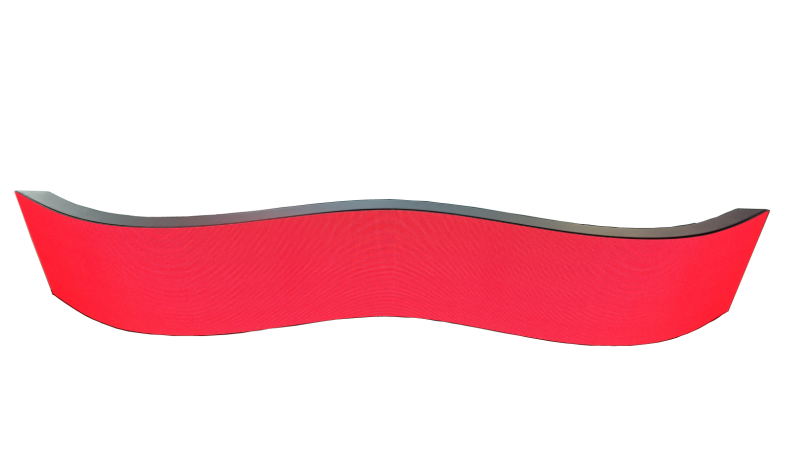

Flexible to be Convex and Convex

Each panel with silicon gal housing which makes it possible to be convex and concave. 8 panels can build a cylinder in 1.2m diameter.

Parameter

Item	Parameter
Model No.	P1.25	P1.56	P1.86	P2	P2.5
Pixel configuration	1R1G1B
LED type	SMD1010	SMD1212	SMD1515	SMD1515	SMD1515
Density（dots/m²）	640,000	406,406	288,906	250,000	160,000
Panel size（mm）	480x320（L x H）
Panel resolution	384x256	306x204	258x172	240x160	192x128
Scan method	1/64	1/40	1/43	1/40	1/32
Refresh rate（Hz）	≥3840	≥3840	≥3840	≥3840	≥3840
Frame frequency（Hz）	50&60
Color depth（bit）	12-16 adjustable
Panel housing material	Silica gel
Panel weight（kg/pcs）	1.6kg
Screen size	Customized, 8 panels can make a smallest cylinder in diameter 1.2m
Protection level	IP43
Maintenance	Rear and front
Brightness（nits）	≥650	≥700	≥700	≥700	≥800
