PixelTriangle

Creative Triangle LED Display

Want some creative LED screen for ceiling installation? PixelTriangle is a good solution.

PixelTriangle is size in 1000x1000x1000mm triangle. It works with winches to make it possible for the panels to go up and down for some special applications.

Product Description

Super slim and lightweight

It is in 30mm depth and 8.9kg/panel. And power supply unit and receivers are built inside.

Special in triangle

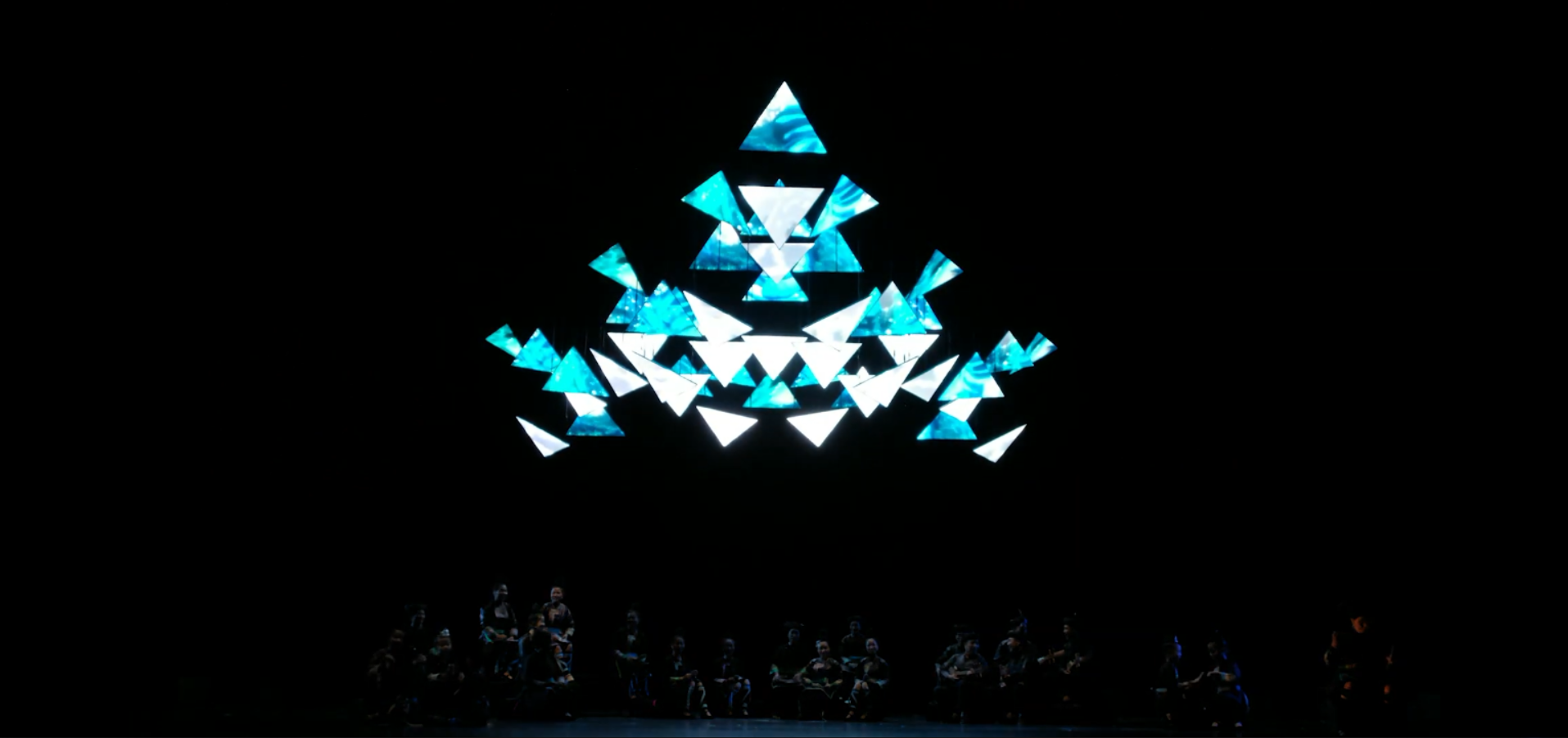

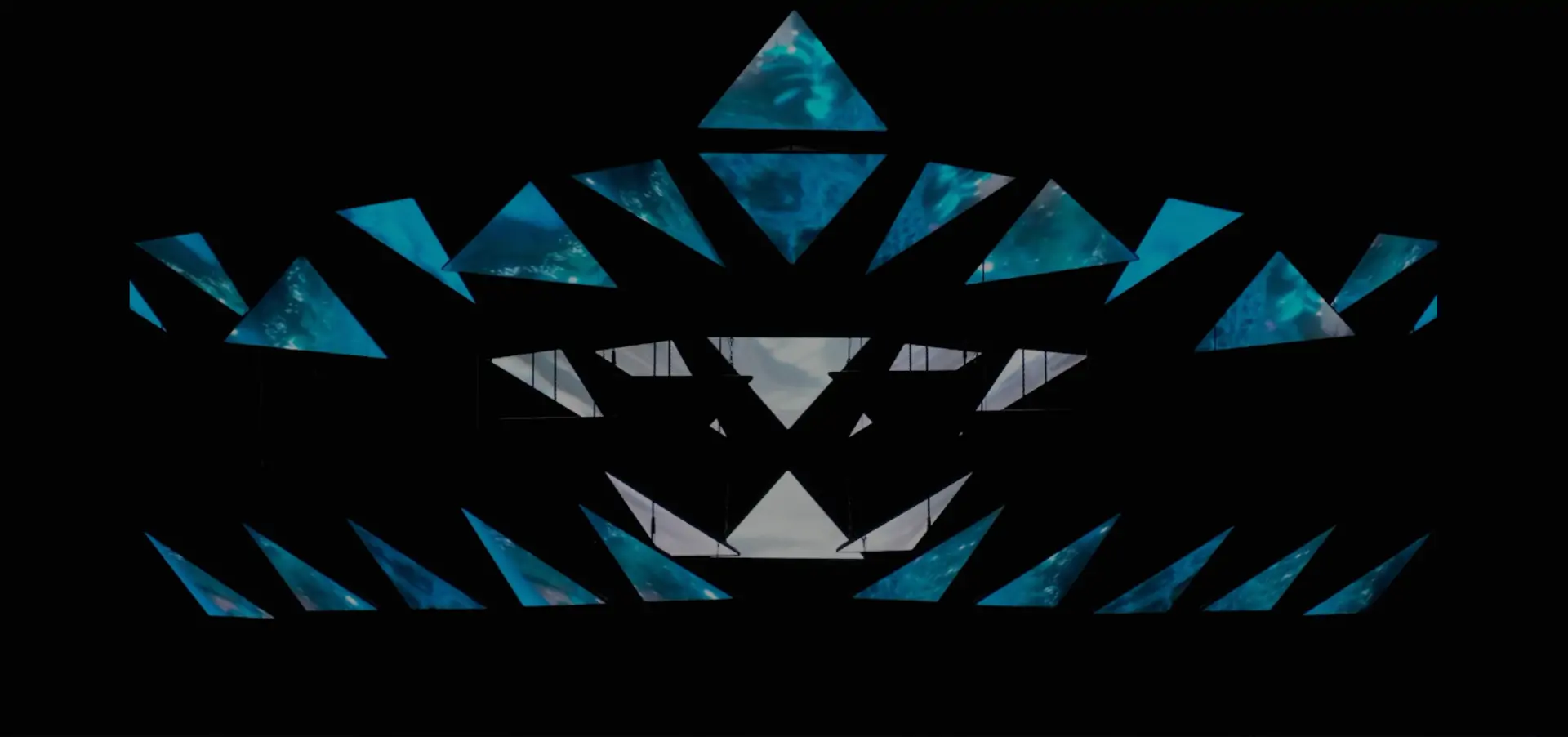

It is a triangle in size 1000x1000x1000mm, different from regular LED display. More screen designs can be possible for staging applications or fixed installations.

Kinetic LED screen

It can be installed from ceiling and moving up and down controlled by winches. There are three dots on each panel, and the height of each dot is controlled independently. The speed is adjustable.

Parameter

Item	Parameter
Model NO.	PTR4.5
Pixel pitch	4.5mm
Pixel configuration	1R1G1B
LED type	SMD2020 BLACK
Panel resolution	220x192/2 pixels
Panel size	1000mmx1000mm x1000mm
Density	48,400dots/㎡
Brightness	800 NIT
Scan method	1/16 scan
Best view distance	≥5m
Max. power consumption	230W / PCS
Ave. power consumption	80W /PCS
Weight	Weight
Color depth	14 bit
Colors	4.398 trillion
Refresh rate	≥3,840Hz
Protection level	Indoor use
